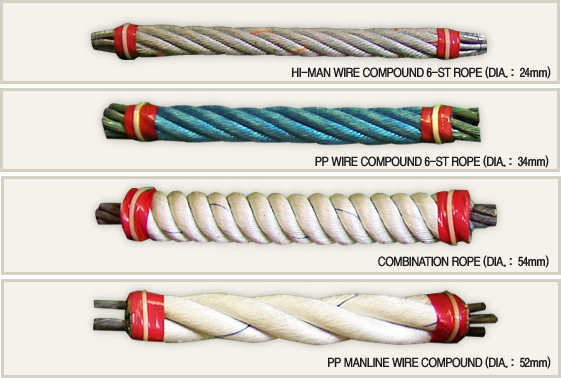

 The rope in which wire strand is inserted at the center of each rope strand is called a
compound rope.
There are 3-ST, 4-ST and 6-ST for the structure and 6-ST compound rope is widely used
Depending on the material covering the exterior, there are polypropylene, nylon, vinylon,
polyester spandex, etc.
The wire structure also has 1×12, 1×19, and 1×24 and can be supplied as requested by
the customers.
The compound rope by Manho is well foamed so that it doesn't get disentangled even
after cutting and can be used safely because it doesn't get twisted.
It can be used for a long time because it has satisfactory wear resistance and high
fracture resistance. |
|
|
 |
|
 |

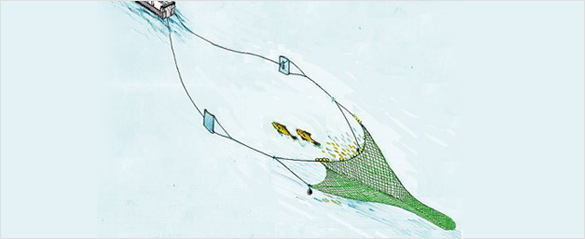

Trawl
Play-ground
Sling
Industrial (suspension bridge, mountain bridge)
Towing |
|
|
 |
| |
|
|
|
 |
| Length
:200M |
| |
| Wire
St. Const.
|
1×12 Weight
|
1×19 Weight
|
1×24 Weight
|
Dia
(mm)
|
Wire
Dia
|
PP
(Kg)
|
VINYLON
(Kg)
|
PP
(Kg)
|
VINYLON
(Kg)
|
PP
(Kg)
|
VINYLON
(Kg) |
16
|
2.7
|
50
|
55
|
71
|
76
|
62
|
68 |
18
|
3.0
|
63
|
69
|
84
|
91
|
79
|
85 |
20
|
3.3
|
78
|
86
|
103
|
111
|
97
|
105 |
22
|
4.0
|
103
|
112
|
141
|
150
|
124
|
134 |
24
|
4.7
|
132
|
142
|
181
|
191
|
161
|
172 |
|
26
|
5.3
|
165
|
177
|
226
|
238
|
202
|
213 |
28
|
6.0
|
202
|
215
|
273
|
286
|
252
|
264 |
30
|
6.7
|
243
|
257
|
342
|
355
|
310
|
323 |
32
|
7.3
|
288
|
303
|
391
|
406
|
365
|
380 |
34
|
8.0
|
337
|
353
|
462
|
478
|
433
|
449 |
|
36
|
8.3
|
370
|
388
|
505
|
524
|
459
|
478 |
38
|
8.7
|
406
|
427
|
553
|
574
|
504
|
524 |
40
|
10.0
|
507
|
526
|
729
|
749
|
665
|
684 |
|
| |
 |
| Length
:180M |
| |
SIZE
(mm)
|
Wire St. Const.
(mm) |
Weight
(Kg) |
30
|
3.3
|
102 |
32
|
4.5
|
134 |
36
|
6.0
|
192 |
38
|
6.5
|
222
|
42
|
6.5
|
249 |
7.3
|
274 |
45
|
7.3
|
296 |
8.0
|
320 |
48
|
7.3
|
318 |
8.0
|
344 |
52
|
8.0
|
375 |
| 54 |
8.0
|
384 |
|
| |
 |
| Length
:100M |
| |
SIZE
(mm)
|
Wire St. Const.
(mm) |
Weight
(Kg) |
48
|
18
|
210.0 |
20
|
233.0 |
50
|
18
|
219.0 |
20
|
241.0 |
52
|
20
|
251.0 |
22
|
283.0 |
54
|
20
|
260.0 |
22
|
292.0 |
56
|
22
|
304.0 |
24
|
327.0 |
58
|
22
|
316.0 |
24
|
337.0 |
|
| |
|
|
|
